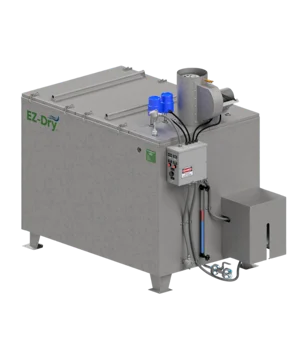

EZD-G13 | Gas Fired Slurry Dryer | Select MOC at Checkout

Model EZD-G13 is available in 316L Stainless Steel or 2205 Duplex materials of construction (MOC) for the wetted components.  Select materials of construction at checkout.  Additional supplementary equipment such as auto-fill assembly, tanks, valves, and spare parts are sold separately.

• 13 gallon/hour evaporation rate
• 224 gallon tank capacity
• 12 gauge 316L stainless steel or 2205 Duplex tank
• 304SS exterior tank skins and lid

• 120V/1PH/15A

• 205,000 BTU/hour natural gas or LPG fired burner with gas valve

• Controls: low level shutoff, high liquid temperature shutoff
• 1" FNPT feed inlet

• 10" diameter exhaust stack
• Approximate shipping weight (with auto-fill system): 3,345 lbs

*Evaporation rate is based on tap water after reaching a boil, may vary with waste stream and environmental conditions.  System not to be used with flammable materials. Compatibility of material of construction with fluid processed to be determined by purchaser.
